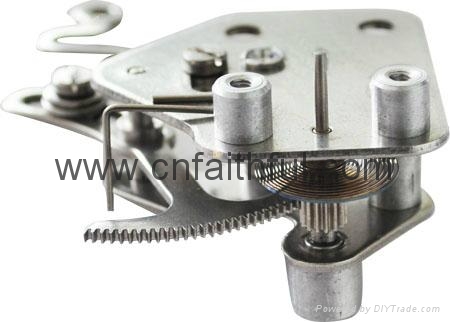

We produce and supply all kind of Vibration-proof pressure gauge movement in China.
It is widely used to all kind of Pressure Gauges.
If you are interested in our product,please send your detailed drawing or sample for us.
So that we can offer the best price and make some samples to test for you.
Welcome to inquire us.
FYAC100-G14R Below information is the parameters of this movement.
Driving Ratio i=158/14=11.28
Length of Axle L=24.8
Module of Gear m=0.3
Taper Ratio of Axis △=1:30
Length of Extend Up Plate Axis B1=9.5
Diameter of Installed Hole φ=4.1
Distance from Axis to Installed Hole ⊥=27*15
Material: Brass or Stainless steel
